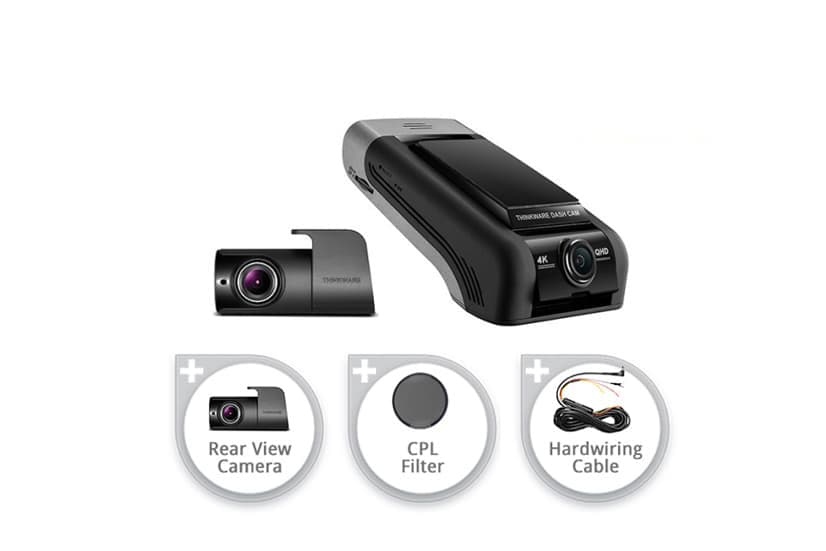

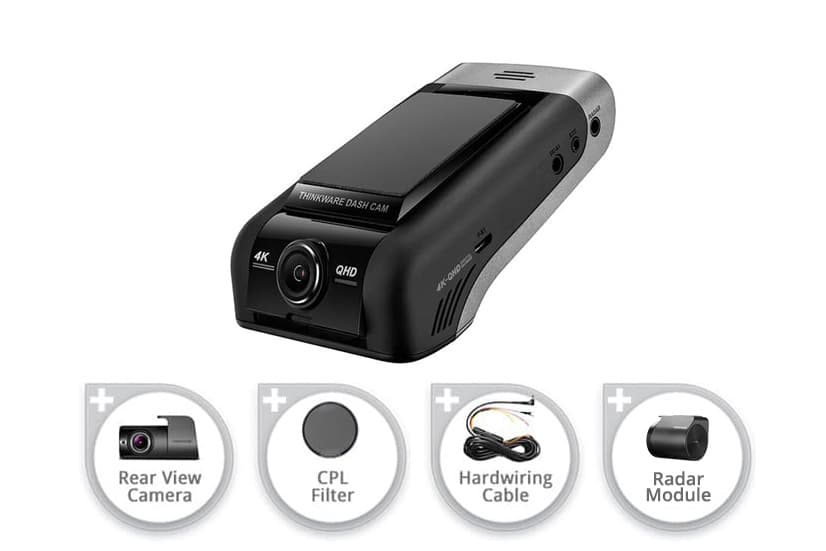

Here’s what you get in the box

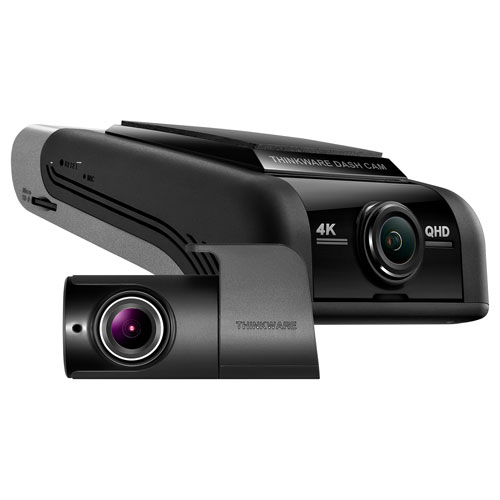

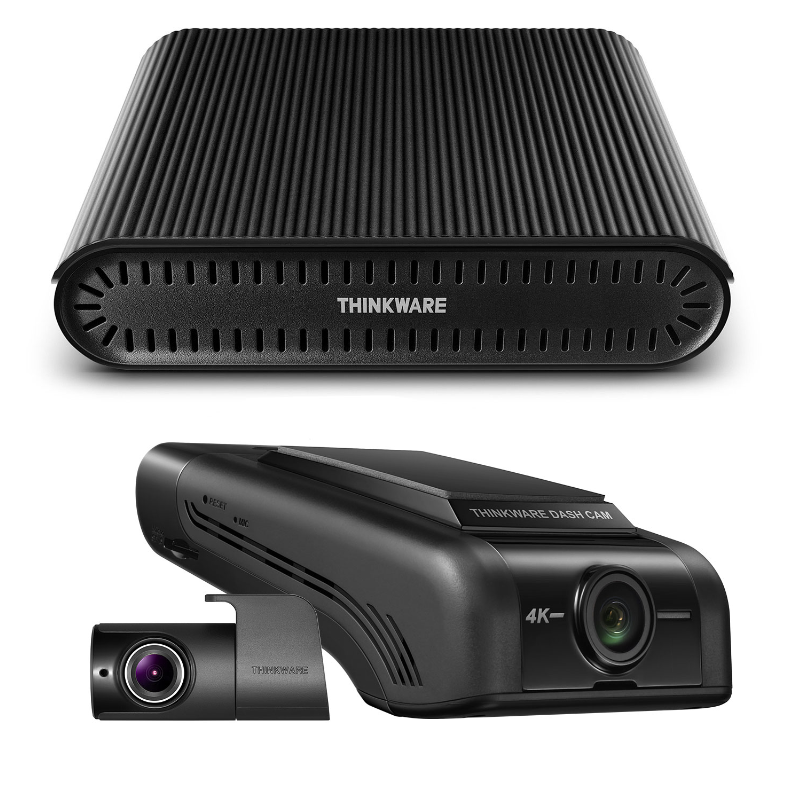

• Dash Cam Front & Rear
• Radar Module
• 12V Power Cable
• 32GB MicroSD Card
• USB MicroSD Card Reader
• Windshield Mount
• Spare 3M Mounting Tape
• Adhesive Cable Clips
• Quick Start Guide
• CPL Filter
• Hardwiring Cable (length: 3m/10 ft)
• Rear Cam Cable (length: 7.5m/24.5 ft)

Here’s what you get the installation

• Installation of front and rear camera
• Installation of radar module
• Parking mode Setting
• Hidden Wire
• Stop & Go available
• Required appointment
• Takes about 90~120 minutes

Features

• Front – 4K UHD (3840 x 2160) @30 fps or 2K QHD (2560 x 1440) @60 fps
• Rear – FHD (1920 x 1080) @30 fps

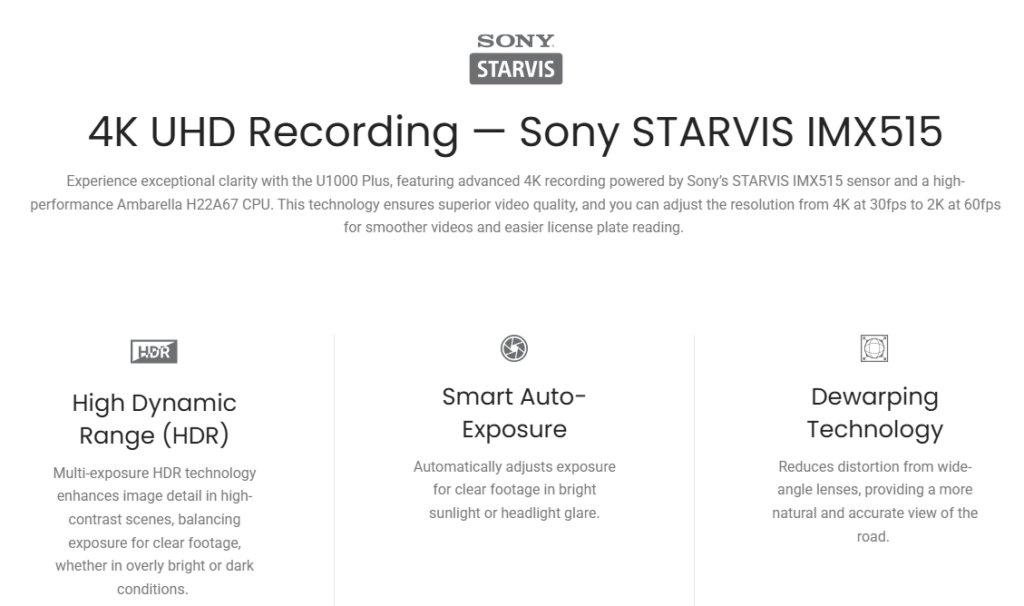

• 8.46 MP Sony STARVIS sensor
• HDR - Front and Rear
• Super Night Vision 3.0
• Dewarping Technology
• Advanced Video Clear Technology
• HEVC format H.265
• Built-in Bluetooth & Wi-Fi
• Built-in GPS
• ADAS (LDWS/FCWS/uFCWS/FVDW)

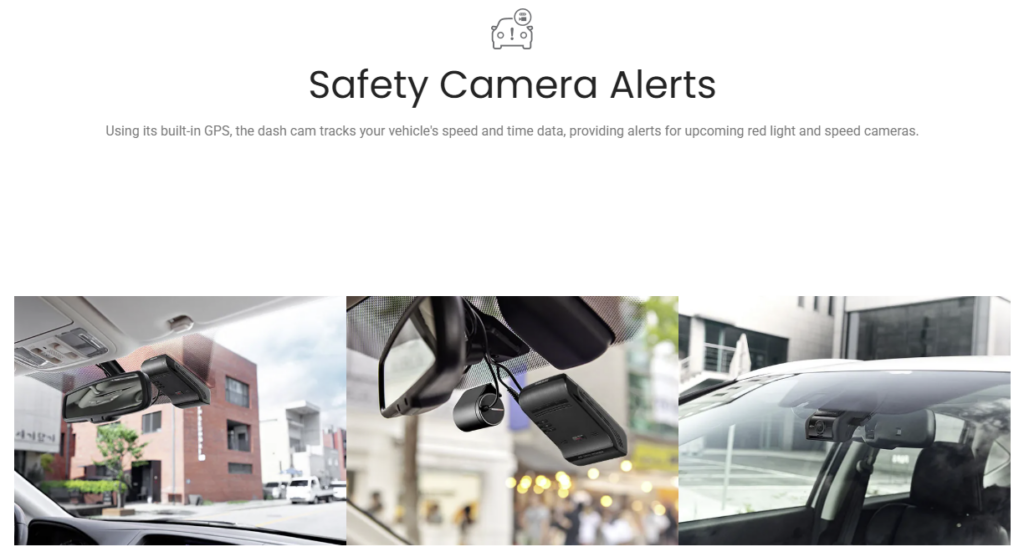

• Safety Camera Alert (Speed & Red Light Camera)
• Parking Surveillance Mode (Smart, Motion & Impact Detection, Time Lapse and Energy Saving Mode)*
• Radar Module Compatible
• Up to 5CH Recording***
• Easy Device Pairing

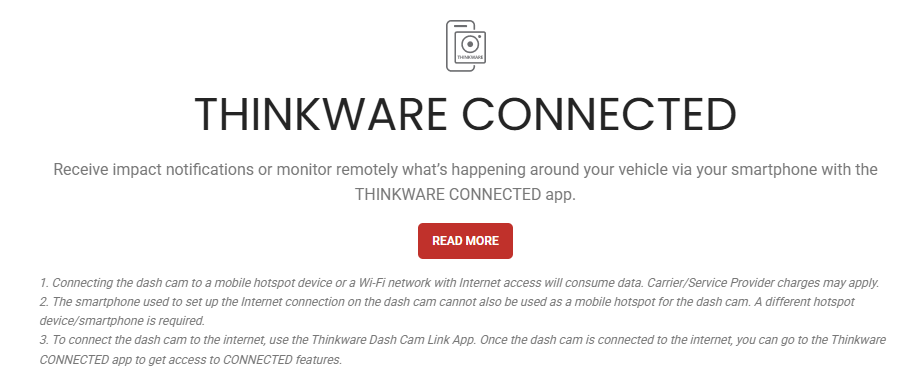

• THINKWARE CONNECTED (Locate Vehicle, Impact Notification, Captured Image of Most Recent Parking and Remote Live View)**
• THINKWARE Dash Cam Link app
• Supports MicroSD Cards up to 512 GB
• Supercapacitor
• Integrated Thermal Protection
• Anti-File Corruption

Specifications

• Resolution:
• Front - 4K UHD (3840 x 2160p) @30 fps or QHD (2560 x 1440p) @60 fps
• Rear - 1080p FHD (1920 x 1080p) @30 fps
• Camera:
• Front - 8.46 MP Sony STARVIS IMX515
• Rear - 2 MP F352 CMOS
• Frame Rate:
• Front – 30, 60 fps
• Rear – 30 fps
• Viewing Angle:
• Front - 135° (Diagonal)
• Rear - 160° (Diagonal)
• Dimensions (WxDxH): 64 x 111.5 x 32 mm (2.52 x 4.39 x 1.26 in)
• Weight: 127.8 g (0.28 lbs)
• Storage Temperature: -20°~ 70° C (-4°~ 158° F)
• Operating Temperature: -10°~ 60° C (14°~ 140° F)
• Capacity: MicroSD Card 32/64/128/256/512 GB UHS-I
• Interface: DC-IN / V-IN / EXT. / RADAR / MicroSD Card Slot
• Input Power: DC 12/24V
• GPS: Built-in
• Languages: English (US,UK), French (Canada, France), Chinese (Simplified, Traditional), Spanish, German, Italian, Portuguese, Russian, Thai, Japanese, Czech, Korean, Hebrew, Arabic
• TW-U1000PLDHF

     Radar Module

• Detection Distance Range: Approx. 7m
• Detection Horizontal Angle Range: Approx. 80°
• Detection Vertical Angle Range: Approx. 35°
• Dimensions(WxDxH) : 48 x 36 x 42 mm (1.89 x 1.42 x 1.65 in)
• Weight: 57.4 g (0.126 lb)
• Storage Temperature:    -30°C~75°C
• TWA-RADS

*Requires Hardwiring Cable or OBD II Power Cable and installation for Parking Surveillance Mode (professional installation recommended)
**THINKWARE CONNECTED uses your smartphone’s or mobile hotspot device’s internet connection to send and receive notifications. Carrier charges may apply.
***Requires optional Multiplexer and additional cameras
